Fruit presses

Fruit presses - hydraulic pack presses

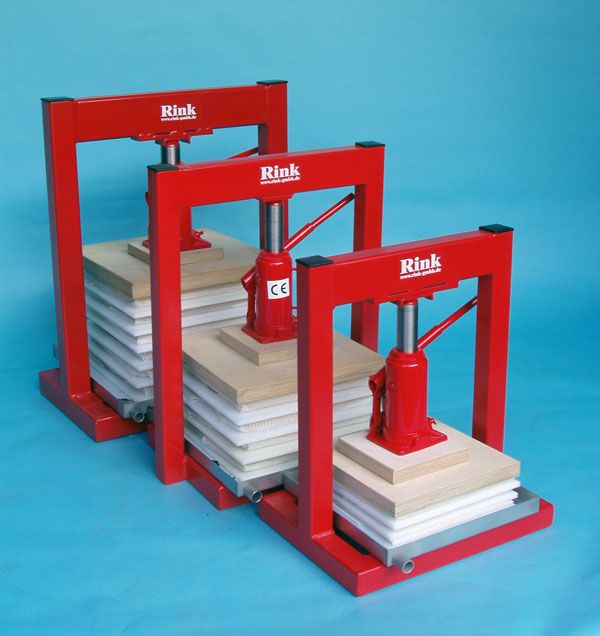

A simple and easy to use table-top version of the established pack press. The fruit is packed in layers in fine-mesh Trevira press filters, in a frame, and pressed out under high pressure. It does not need to be screwed down. The juice container is made of stainless steel 1.4301, the press frame of PE natural plastic. Fruit utilization is up to 80 %, depending on the fruit, and the pressing quality. This is the highest utilization of all press systems.

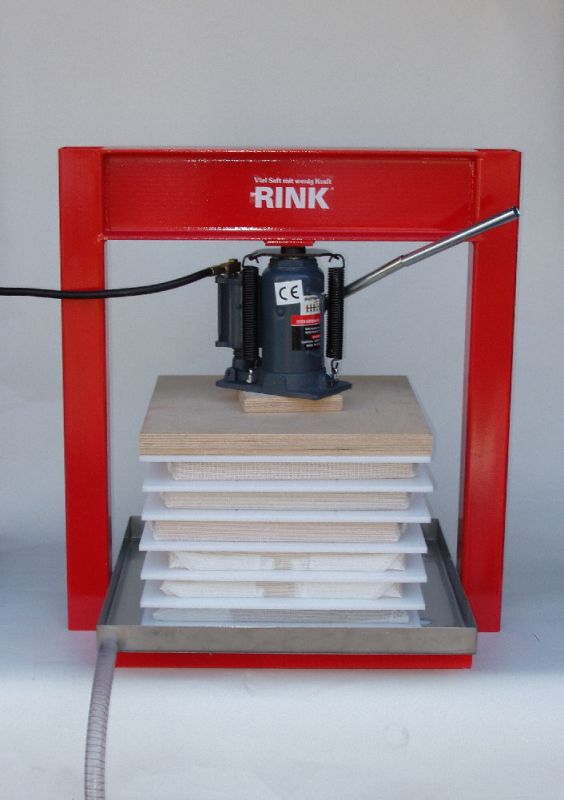

It can be powered by manual hydraulics, or pneumatically (with a pneumatic air compressor).

	TP 10	TP 20	TP 40	TP 70
Height	58 cm	69 cm	77 cm	90 cm
Width	47 cm	54 cm	63 cm	82 cm
Depth	35 cm	42 cm	50 cm	60 cm
Weight	32 kg	45 kg	59 kg	82 kg
Pressure	10 t	10 t	15 t	20 t
Filter layers	3	4	6	6
Capacity per load	ca. 10 kg	ca. 20 kg	ca. 40 kg	ca. 70 kg
Juice producedper load	6-8 l	12-16 l	25-32 l	50 l
Hourly capacity	30-40 l	60-80 l.	90-110 l	up to 200 l
manual hydraulics	370,- €	430,- €	580,- €	935,- €
Art. nr.	1205	1206	1207	12089
Pneumatically-powered			698,- €	990,- €
Art. nr.			12070	12142

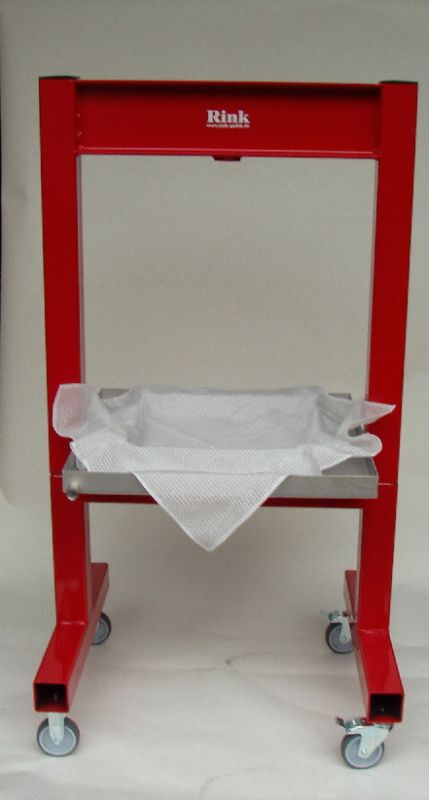

TP 70 with moblie, plug-in frame (all models can be converted)
€ 290,-

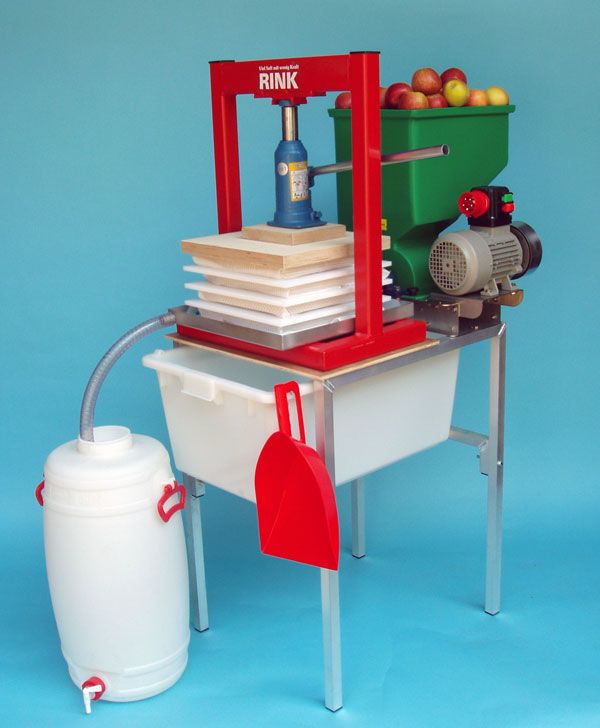

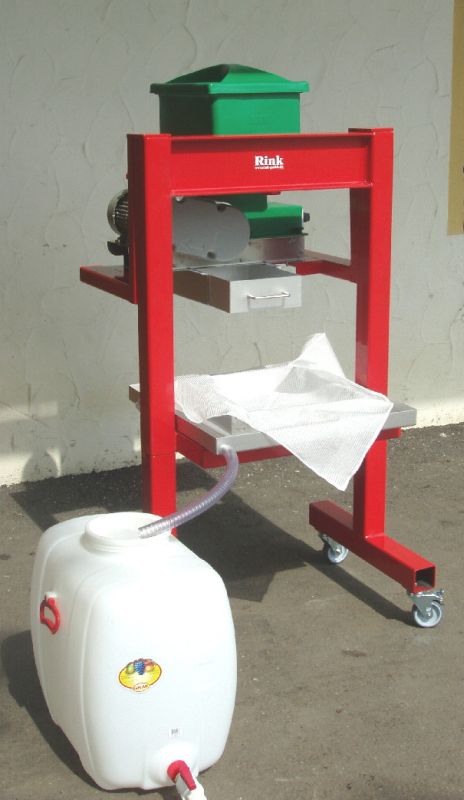

mobile TP 70 wit fruit mill





For further information, see our broscure "Home-Brewing"
