Fruit Processing Filling machines Bag-in-Box Dosing Machine EF 600
Fruit Processing Filling machines Bag-in-Box Dosing Machine EF 600
Filling machines
Bag-in-Box Dosing Machine EF 600
- Dosing machine for hot and cold filling of fruit juice, wine, vinegar, rape oil, olive oil, etc.
- Filling capacity up to 1.000 l/h
- continuous operation by double operation
- juice flow by pump or gravity

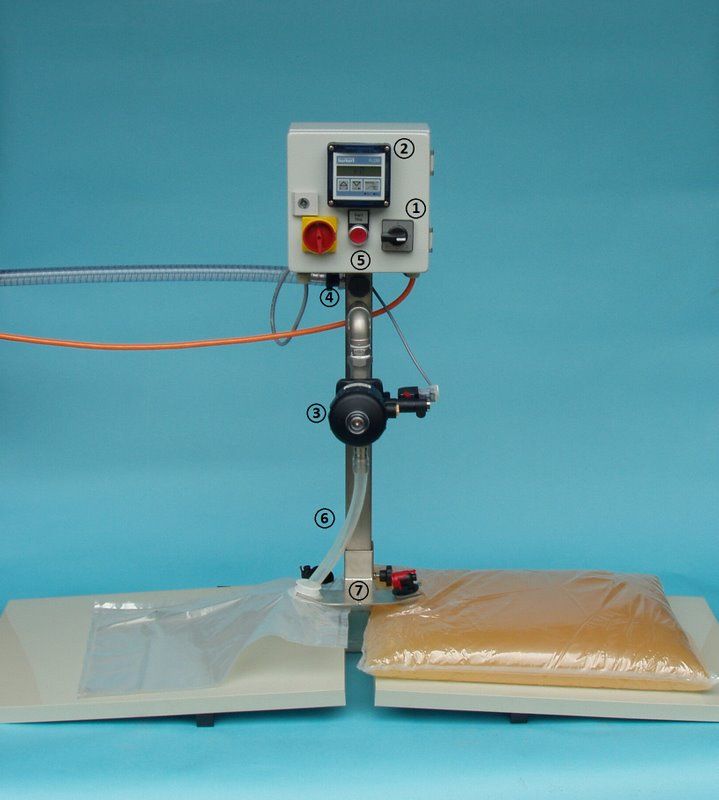

- compact machine with switching gear:
1 selection switch for the quantities 3, 5, 10, 20 litres + 1 free position (volumes from 0,1 to 100 litres can be programmed)
2 important additional displays:
- Pre-selected filling quantity
- Quantity per customer or product
- Total filling quantity, e.g. per seasonFilling speed
- Throughput quantity mesurement
3 Pneumatic valves (air compressor (6-8 bar) required)
4 Throughput quantity measurement
5 Dosing start switch
6 Silicon filling tube – simple and safe operation
7 Double operation at adjustable height: no interruption of fillung when changing bags
Other useful additional apparatus:

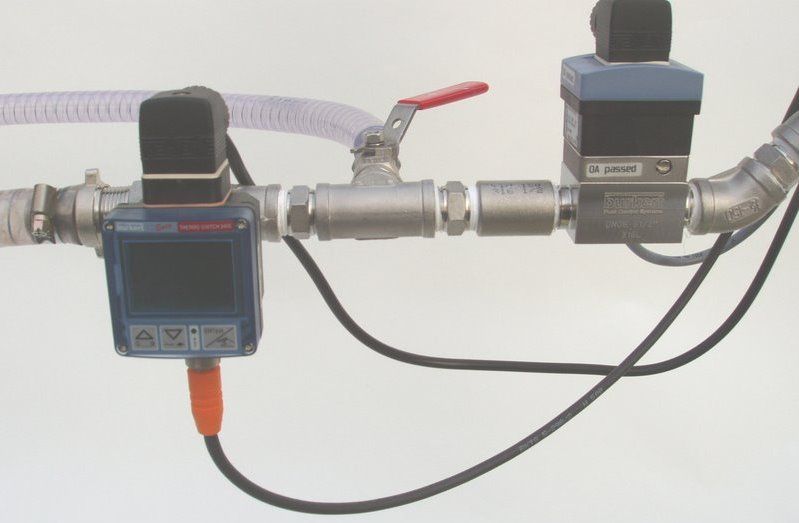

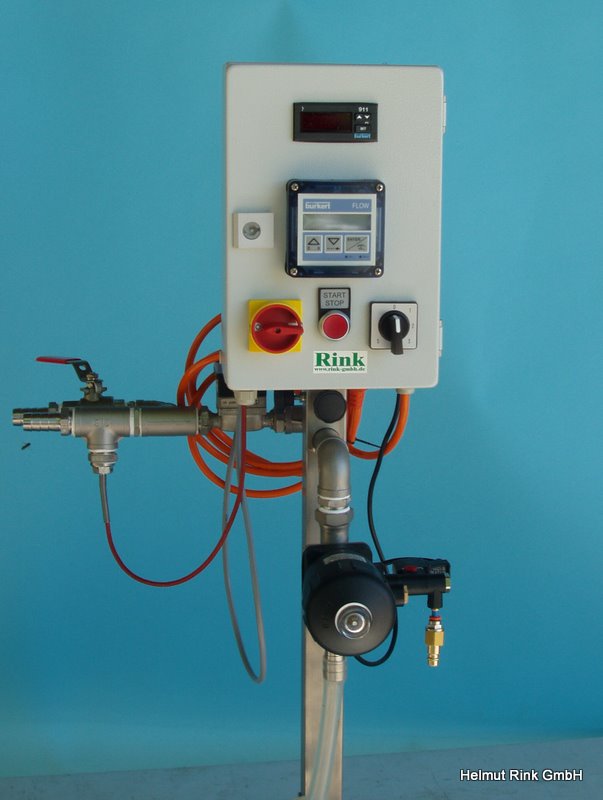

Automatic minimum temperature control.
Only juice over 78°C is
released.
Flexi
ble use (filling canisters)
price on request
